Description

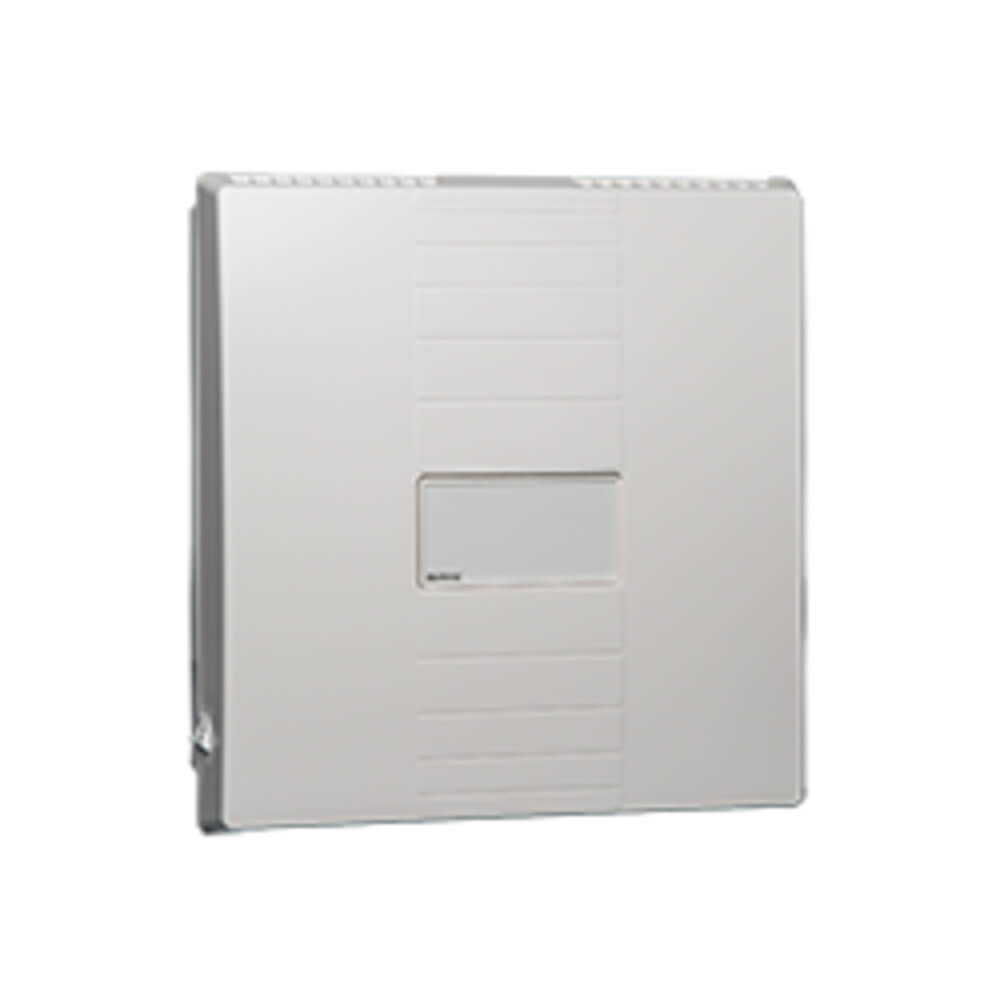

Decentralized heat recovery unit - Meltem M-WRG-S

The Meltem M-WRG-S is a decentralised ventilation unit with 4 ventilation levels and time-limited intensive ventilation. Equipped with a cross-flow heat exchanger.

Device installation

The ventilation unit is designed to supply and extract air from various public and living spaces, including:

  • bedrooms,
  • playrooms,
  • living rooms,
  • bathrooms,
  • basement
  • workshops,
  • offices,
  • consulting rooms,
  • etc.

>It should be installed perpendicular to the external wall.

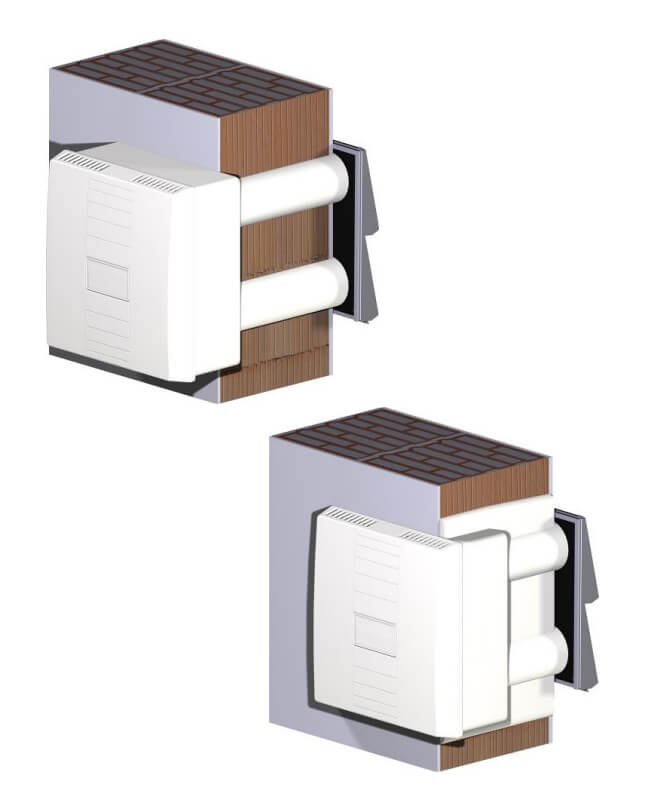

This decentralized heat recovery unit features 2 installation options:

  • surface-mount installation
  • flush-mount installation

Device management

Device is controlled via three step rotary switch:

  1. 15 m3/h;
  2. 30 m3/h;
  3. 60 m3/h;
  4. Switching sequence I-II-I - 100 m3/h (intensive ventilation level, 15 min)

It can be operated via wireless control units or external control input (optional)

Please note that flush-mount installation requires an M-WRG flush-mount installation kit.

Technical specification
Air exchange rates
Airflow
15-100 m3/h
Heat exchanger
cross-flow heat exchanger
Heat recovery efficiency
up to 76%
Power Consumption
3,8-34 W
Energy class
B
Sound insulation depending on installation version
up to 50 dB
Management System
Three step retary switch
Filters
G4; F4,M6 (Optional)
Filter replacement alert
Temperature sensor
Auto at 2°C

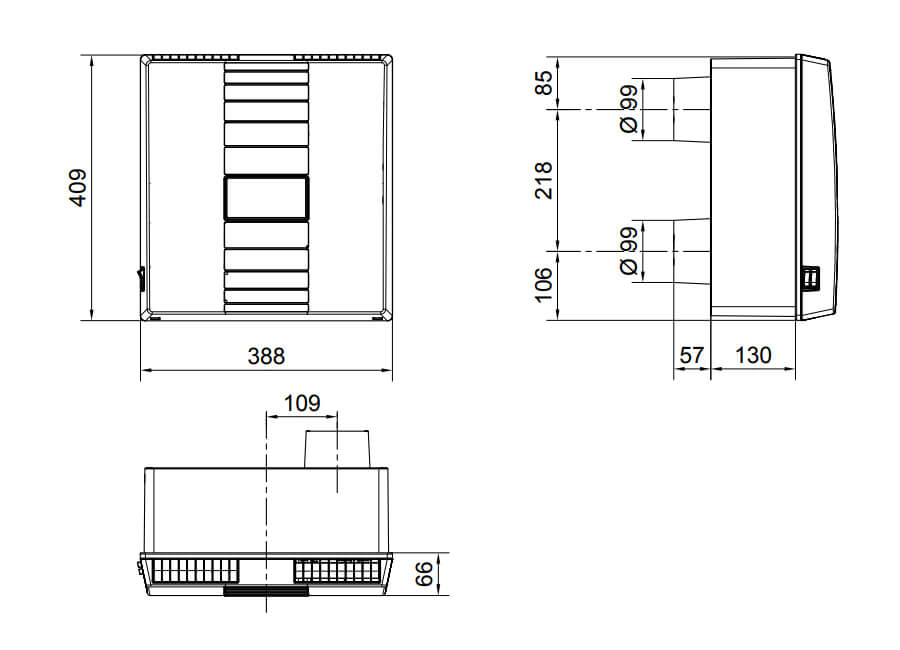

Dimensions excl. air connectors (W x H x D)
388 x 409 x 196 mm
Core drill holes
Ø120 mm
Weight
8,1 kg
European Quality Certificate CE
2-year warranty
