Komfovent

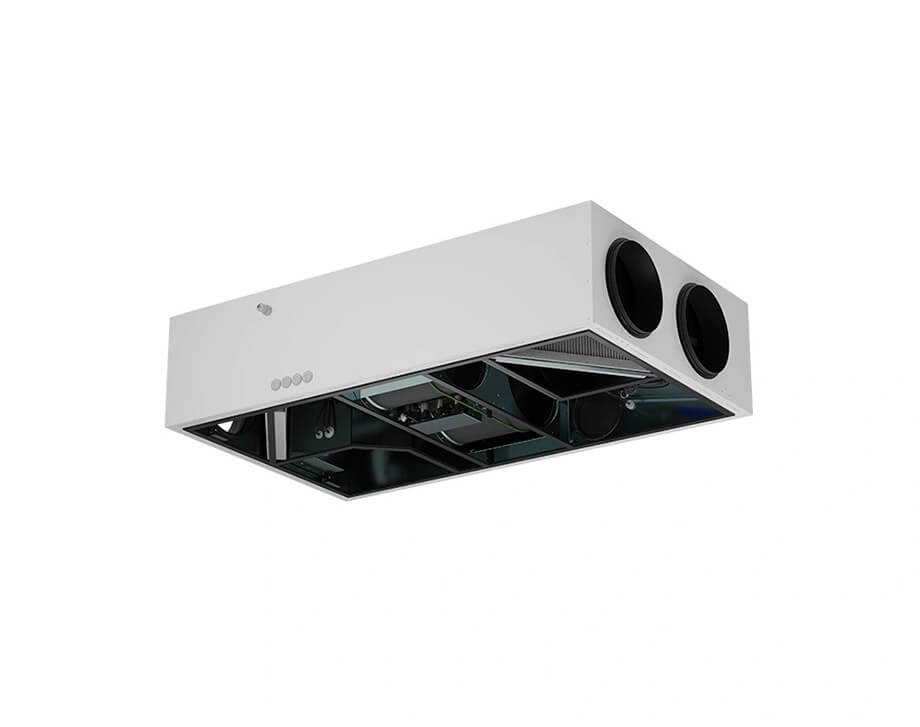

Sistema centralizzato di recupero del calore KOMFOVENT Domekt R 400 F C6M

€3.104,86 EUR
€3.104,86 EUR
Imposte incluse. Spese di spedizione calcolate al check-out.
Tipo di prodotto
Description

The KOMFOVENT Domekt R 400 F C6M is a residential ventilation unit with a rotary heat exchanger, perfect for northern climate countries. This unit provides high efficiency air flow up to 438 m3/h, while offering an A energy class. Featuring a smart C6M control system, this unit also offers three mounting positions, and up to five duct connections for bathroom extraction. Choose from either the condensing rotary heat exchanger to effectively recover heat in low temperatures, or the sorption-enthalpy rotary heat exchanger with zeolite coating for efficient heat and cold control.

  • Maximal air flow 438 m3/h
  • A energy class
  • Residential ventilation unit with rotary heat exchanger for northern climate countries
  • Smart C6M control system
  • 3 mounting positions: On the ceiling, on the wall, on the floor
  • 5 duct connection for bathroom extraction
  • (1st option) Condensing rotary heat exchanger effectively recovers the heat in low temperatures, maintains an optimal indoor microclimate, regenerates humidity in winter
  • (2nd option) Sorption-enthalpy rotary heat exchanger with zeolite coating effectively saves heat and cold, controls the humidity in the room while maintaining the optimal comfort level

Information from manufacturer`s website>

    Technical specifications
    Domekt R 400 F C6M
    Maximal air flow
    438 m3/h
    Maximal air flow
    122 l/s
    Recommended room area per system
    up to 125 m2
    Reference flow rate
    0,085 m3/s
    Reference pressure difference
    50 Pa
    SPI
    0,25 W/(m3/h)
    Thermal efficiency of heat recovery
    82 %
    Supply voltage
    1~230 V
    Electric power input of the fan drive at maximum flow rate
    98 W
    GENERAL FEATURES
    Heat exchanger types
    Condensing / Sorption-enthalpy rotary heat exchanger with zeolite coating
    Filters
    M5 (optional F7)
    Noise level
    45 dB(A)
    DIMENSIONS
    Diameter holes
    200 mm
    Width
    700 mm
    Height
    310 mm
    Length
    1170 mm
    Weight
    65 kg
    Maintenance space
    300 mm
    A energy class
    European Quality Certificate CE.
    2-year warranty
